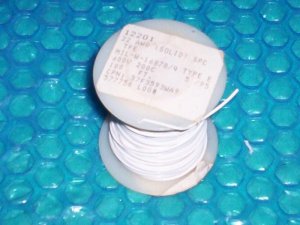

High Temperature Hook-Up Wire
TFE Teflon Insulated This spool was originally 100Ft. but some unknown quantity has been used. Weight is 4.6oz.on spool.
MIL-W-16878/4 (Type E) PTFE hook up wire is suitable for high temperature applications. The medium wall PTFE insulation offers high reliability and excellent thermal stability. It resists chemicals, ultra-violet radiation, and mold growth and is non-toxic and safe for the environment. The PTFE insulation has a great flex-life and is suitable for a wide frequency range. Compared with other insulations, PTFE saves space and weight and is easy to install. Common applications include military harnessing, power supply lead wire, appliance wiring and medical electronics.
AWG Size 22
Conductor Stranding Solid
Nom. O.D. (in) 0.045
Nom. Insul. Thick. (in) 0.010
Approx LBS/MFT 4
Mil-Spec # M16878/4BFA
UL Style 1213
Mil-Spec M16878/4
Min. Temp -60°C
Max. Temp 200°C
Cond. Material Silver-Coated Copper
Insul. Material TFE Teflon stk#(700)A15,B5
